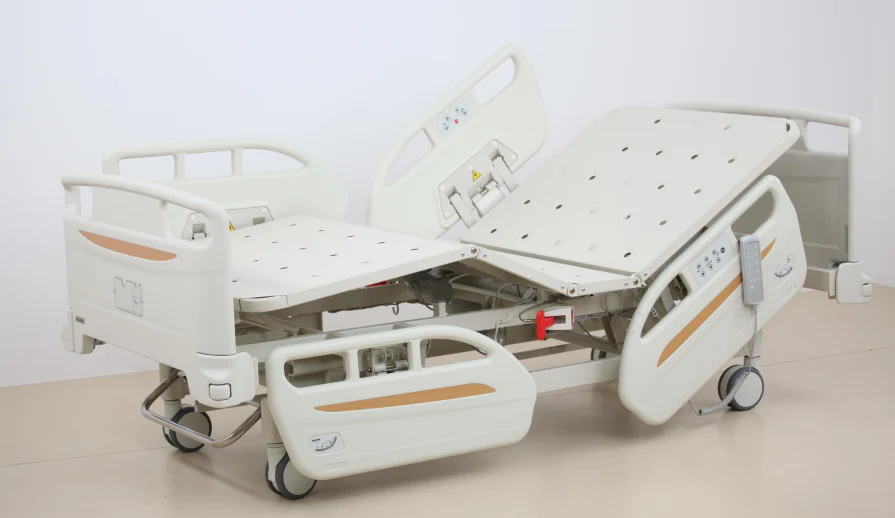

Specifications:
supply voltage: AC220V±20V
power frequency: 50Hz± 1Hz
Working Voltage: DC 24V
Total power input: ≥450VA
Working environment temperature: 5 ℃ ~ 40 ℃
Relative humidity: ≤ 85%
Atmospheric pressure: 86KPa ~ 106KPa
Fuse: 1A
Shell protection grade: IPX4
Maximum test load: 4000N
Safe working load: 1700N
Hanging load of the infusion pole: <2kg
Ajustable range of the infusion: ≥ 300mm
Maximum vertical length of the soft link: ≤ 280mm vertical axis corresponds to the bed body
Angle of Back Section: 0 °–65 °(±5 °)
Angle of Leg Section: 0 °–35 °(±5 °)
Adjustable Height: 475–730mm
